1100°C Max. temperature

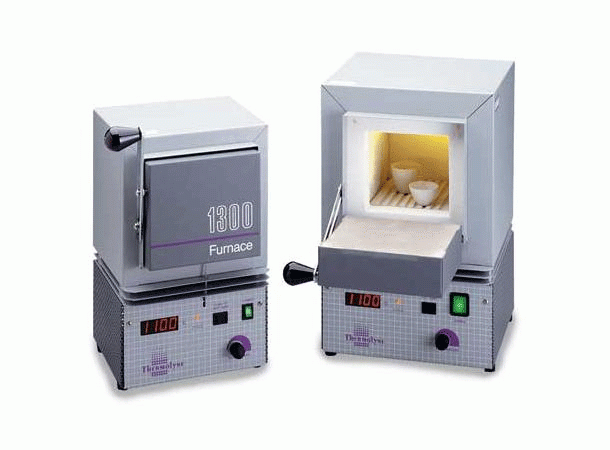

Product Description :
• Ceramic fiber insulation permits faster heat-up, reduces energy consumption.• Embedded heating element on top and both sides improves temperature uniformity.
• Drop-down door doubles as a convenient shelf for loading and unloading.
• All models shipped complete with power cord.
Operation
• A1: Digital single set point control. A single display shows actual temperature or set point.Safety
• Door safety switch protects operator by removing power to the heating elements upon opening the door.• Thermocouple break protection cuts power to the heating elements, prevents a thermocouple failure runaway condition.
• The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices.
Applications
• Ashing most types of organic, inorganic samples
• Heat treating small steel parts
• Ignition tests
• Gravimetric analysis
• Determination of volatile and suspended solids
Specifications
| Amps | : | 6.3 |
| Chamber Cubic Inches L | : | 129 (2.1) |
| Chamber Dimensions D | : | 6 (15.24) |
| Chamber Dimensions H | : | 4.25 (10.8) |
| Chamber Dimensions W | : | 5 (12.7) |
| CUL | : | false |
| Desc | : | Small Benchtop Muffle |
| Hertz | : | 50/60 |
| NRTL | : | false |
| Operating Temp Range C | : | 100-1100 |
| Overall Dimensions D | : | 15.8 (40) |
| Overall Dimensions H | : | 14.5 (37) |
| Overall Dimensions W | : | 10 (25) |
| Product Line | : | Thermolyne |
| Shipping Weight LK | : | 28 (12.7) |
| Stability at 1000 | : | ± 0.5°C |
| Sub Product Group Id | : | 95 |
| Temp Control Group | : | A1 |
| Uniformity at 1000 | : | ± 5.0°C |
| Volts | : | 240 |
| Watts | : | 1520 |
