( OVER HEAD STIRRER ) Made in Ika - Germany

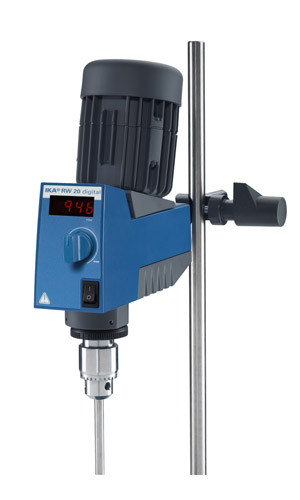

Versatile and affordable, the RW 20 overhead stirrer has been upgraded with technical improvements from the RW 20 Series design. This mechanical mixer has two speed ranges for low-speed mixing of high viscosity materials andintensive mixing of low viscosity materials. Available stirring elements ensure that the RW 20 satisfy a wide range of laboratory mixing applications.
PT OCTA PRIMA LESTARI
Rukan Mitra Matraman Blok B-12. Jl. Matraman Raya No. 148 Jakarta 13150
Tlp : 85918154 - 85918155 - 85902391 & 8512595
email : sales@octaprimalestari.com
HP : 081398855242
Versatile and affordable, the RW 20 overhead stirrer has been upgraded with technical improvements from the RW 20 Series design. This mechanical mixer has two speed ranges for low-speed mixing of high viscosity materials andintensive mixing of low viscosity materials. Available stirring elements ensure that the RW 20 satisfy a wide range of laboratory mixing applications.
- For basic stirring operations of liquids up to 20 liters
- Two-speed mechanical motor for a wide range of liquid viscosities
- Adjustable speed range from 60-2,000 rpm
- Push-through agitator shafts when device is stationary
- Constant power-drive and digital LED speed display
Speed range I: speed max. (at 60 Hz):
600rpm
Speed range I: speed min. (at 60 Hz):
72rpm
Speed range II: speed min. (at 60 Hz):
288rpm
Speed range II: speed max. (at 60 Hz):
2400rpm
Chuck range min. diameter:
0.5mm
Speed range II: speed max. (at 50 Hz):
2000rpm
Speed range II: speed min. (at 50 Hz):
240rpm
Torque max. at stirring shaft at 100 1/min:
150Ncm
Torque max. at stirring shaft at 1.000 1/min:
24Ncm
Speed range I: speed min. (at 50 Hz):
60rpm
Speed range I: speed max. (at 50 Hz):
500rpm
Chuck range max. diameter:
10mm
Hollow shaft, inner diameter:
10.5mm
Height:
294mm
Depth:
212mm
Weight:
3.1kg
Power input:
72W
Voltage:
220 - 240/100 - 115V
Width:
88mm
deviation of speed measurement:
30±rpm
Extension arm diameter:
13mm
Extension arm length:
160mm
Nominal torque:
1.5Nm
Setting accuracy speed:
1±rpm
Torque max. at stirring shaft at 60 1/min (overload):
300Ncm
Torque max. at stirring shaft:
150Ncm
Fastening on stand:
extension arm
Hollow shaft (push-through - when stopped):
yes
Torque display:
no
Speed control:
mechanical, stepless
Temperature display:
no
Stirring element fastening:
chuck
Speed display:
LED
RS 232 interface:
no
Analog output:
no
USB interface:
no
Protection class according to DIN EN 60529:
IP 20
Permissible ambient temperature min.:
5°C
Motor rating output:
35W
Motor rating input:
70W
Speed min.:
60rpm
Viscosity max.:
10000mPas
Output max. at stirring shaft :
26W
Stirring quantity max. per stirring position (H2O):
20l
Speed max.:
2000rpm
Permissible ambient temperature max.:
40°C
Permissible relative humidity:
80%
Frequency:
50/60Hz
Permissible ON time:
100%
Timer:
no
